ACAI Linear

ACAI Linear Pendant Light

The ACAI series combines modern design, a homely atmosphere, and practical functionality. At its heart is the handcrafted shade made of matte white opal glass, which provides soft, all-round, glare-free illumination. ACAI is available in three different glass sizes: Ø 16 cm / Ø 21 cm / Ø 26 cm.

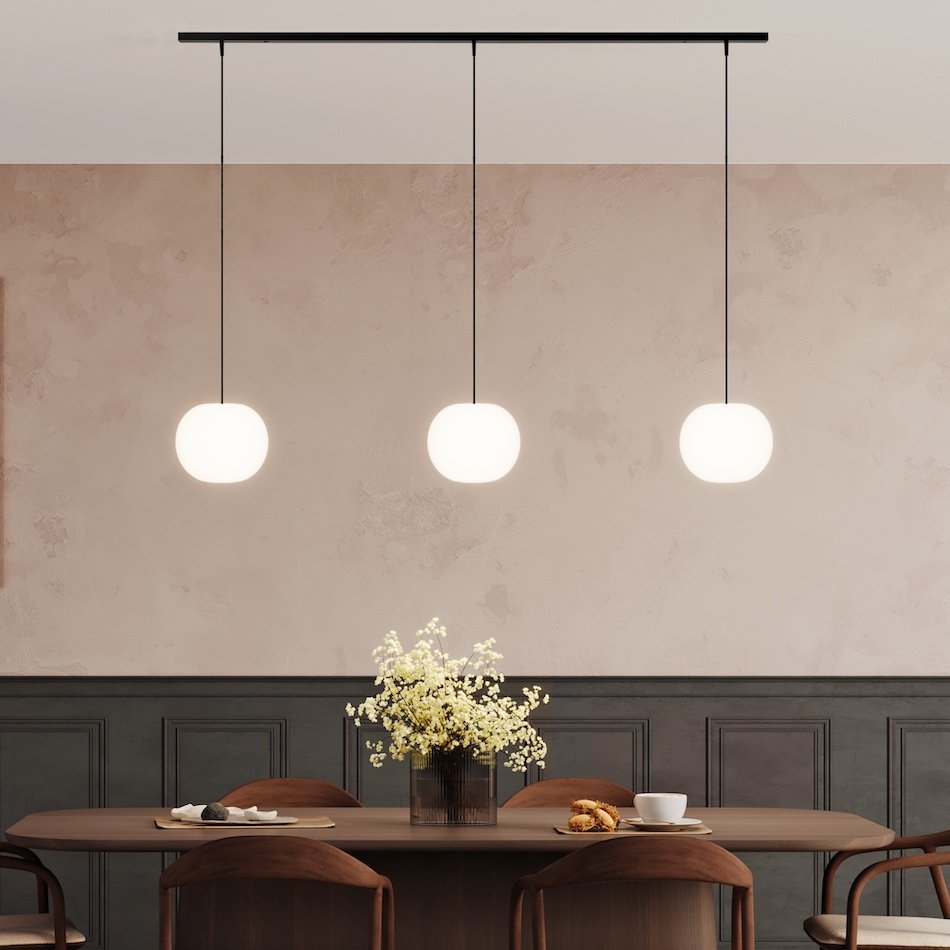

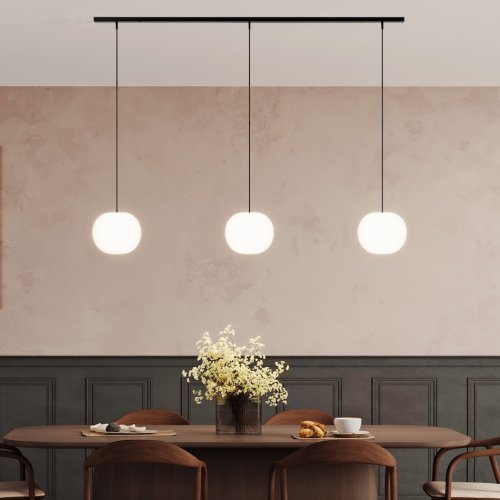

In this version as a linear multi-pendant, ACAI is ideal for evenly lighting dining tables, kitchen islands, or counters. Each pendant hangs from a 150 cm cable, which can be shortened if needed or delivered in longer lengths upon request.

The canopy and fittings are made of aluminum and are powder-coated in either matte black or matte white. The version with a white canopy comes with transparent cables and white glass holders, while the black version features a black fabric cable and matching black holders.

Each shade houses an E27 socket, allowing for easy replacement of the light source. (Note: The ACAI 16 model is best used with a golf-ball/drop-shaped bulb.)

Casablanca Leuchten GmbH
Max-Planck-Straße 16, 63303 Dreieich | +49 (0)6103 803770 | info@casablanca.de

The ACAI series combines modern design, a homely atmosphere, and practical functionality. At its heart is the handcrafted shade made of matte white opal glass, which provides soft, all-round, glare-free illumination. ACAI is available in three different glass sizes: Ø 16 cm / Ø 21 cm / Ø 26 cm.

In this version as a linear multi-pendant, ACAI is ideal for evenly lighting dining tables, kitchen islands, or counters. Each pendant hangs from a 150 cm cable, which can be shortened if needed or delivered in longer lengths upon request.

The canopy and fittings are made of aluminum and are powder-coated in either matte black or matte white. The version with a white canopy comes with transparent cables and white glass holders, while the black version features a black fabric cable and matching black holders.

Each shade houses an E27 socket, allowing for easy replacement of the light source. (Note: The ACAI 16 model is best used with a golf-ball/drop-shaped bulb.)

Details

Material

Glass

  • Handblown glass opal white matt

Fixture

  • Aluminium white matt

  • Aluminium black matt

Variants
Specifications
Item Description
Type of Luminaire Pendant
Designer Dieter K. Weis
Voltage max. 250 V
Light Spread All sides diffuse
Dimmable Dimmable external
Protection IP20
Protection Class 1 (Grounded)
Replaceable Light Source   Yes
Suspension   Cable suspension
Longer Suspension   Possible
Multiple Suspension   Possible
Oblique Ceilings   Yes
Rise & Fall   No
Ceiling Fixture   Central
Additional Information

Replaceable Light Source

Light Fixtures Made to Last

For an above-average product lifetime and for the sake of the environment, we design and manufacture our luminaires in such a way that the light source and, if present, the driver are always replaceable. For this reason, our luminaire models either use sockets that can be fitted with commercially available LED light sources or they use LED light source that can be replaced by a qualified electrician or by us. We follow market standards so that the LED light sources we use will still be available in comparable designs in the future. In this way, we ensure that our customers can enjoy a Casablanca luminaire for a long time and that the environment is protected by avoiding electrical waste.

EPREL

European Product Registry for Energy Labelling

The EU energy labelling and ecodesign legislation help improve the energy efficiency of products on the EU market.

Ecodesign sets common EU wide minimum standards to eliminate the least performing products from the market. The energy labels provide a clear and simple indication of the energy efficiency and other key features of products at the point of purchase. This makes it easier for consumers to save money on their household energy bills and contribute to reducing greenhouse gas emissions across the EU.

The EU legislation for energy labels and ecodesign has been estimated to bring energy savings of approximately 230 Mtoe (million tonnes of oil equivalent) by 2030. For consumers, this means an average saving of up to €285 per year on their household energy bills. Moreover, energy efficiency measures will create €66 billion in extra revenue for European companies.

Suspension Types

Wire Pendant Luminaire Information

Fixture can be suspensed with either the electrical cable or a Holding Wire

Longer Suspension

High Ceilings

Casablanca pendant luminaires are supplied with suspensions for an average room height of 2.50 to 2.85 meters. The suspensions can be shortened. For higher ceilings, the luminaires can be ordered with longer suspensions.

Multiple Suspension

The double pendant allows individual positioning of the two pendants in the desired distance between from each other. Also available as „rise&fall“ suspension.

For multiple fixture mounting please place an order for an additional single pendant WITHOUT CEILING CANOPY.

Multiple Fixture

Oblique Ceilings

Casablanca luminaires can be adapted and extended with optional accessories to structural conditions and individual requirements.

Pendant luminaires cannot be mounted on sloping ceilings without modifications, otherwise there is a risk of the mounting brackets coming loose or the wire getting damaged. This is why Casablanca offers special accessories for mounting on sloping ceilings.

Rise & Fall Suspension

Casablanca luminaires can be adapted and extended with optional accessories to structural conditions and individual requirements.

Single Pendant with »Rise & Rall« Suspension (two fixing possibilities)

Ceiling Fixture

Wire Pendant Luminaire Information

In case the electric outlet isn’t located where the luminaire is planned to be installed, we recommend the decentralized fixing possibility. Longer electric cables or holding wires are available for a surcharge.


Central fixing possibility

Decentralised fixing possibility

Material

Glass

Handblown glass opal white matt

Fixture

Aluminium white matt

Aluminium black matt

Specifications

Type of Luminaire
Pendant
Designer
Dieter K. Weis
Voltage
max. 250 V
Light Spread
All sides diffuse
Dimmable
Dimmable external
Protection
IP20
Protection Class
1 (Grounded)
Suspension
Cable suspension
Longer Suspension
Possible
Multiple Suspension
Possible
Oblique Ceilings
Yes
Rise & Fall
No
Ceiling Fixture
Central

Varianten

  • ACAI 21 - Double Pendant
    Dimensions
    • A: Ø 21 cm
    • B: 17,5 cm
    • C: 150 cm
    • D: 2 cm
    • E: 90 cm
    Light Source
    • 1x E27 max. 40W - not included
    Color Model
    Fixture white matt AC21-B216W
    Fixture black matt AC21-B216S
  • ACAI 26 - Double Pendant
    Dimensions
    • A: ø 26 cm
    • B: 21 cm
    • C: 150 cm
    • D: 2 cm
    • E: 90 cm
    Light Source
    • 1x E27 max. 40W - not included
    Color Model
    Fixture white matt AC26-B216W
    Fixture black matt AC26-B216S

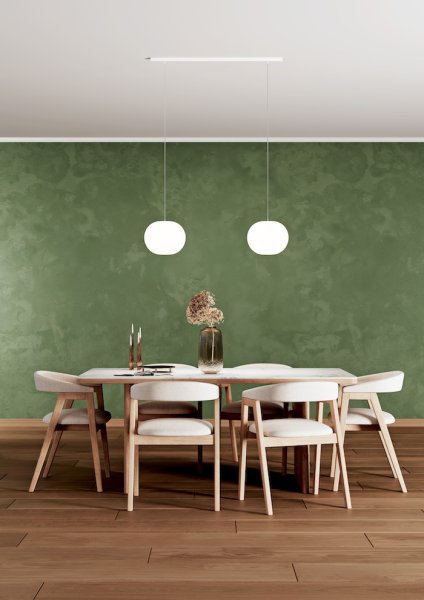

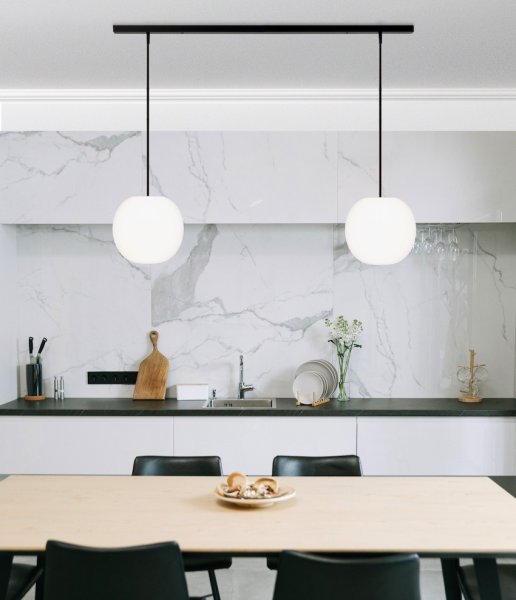

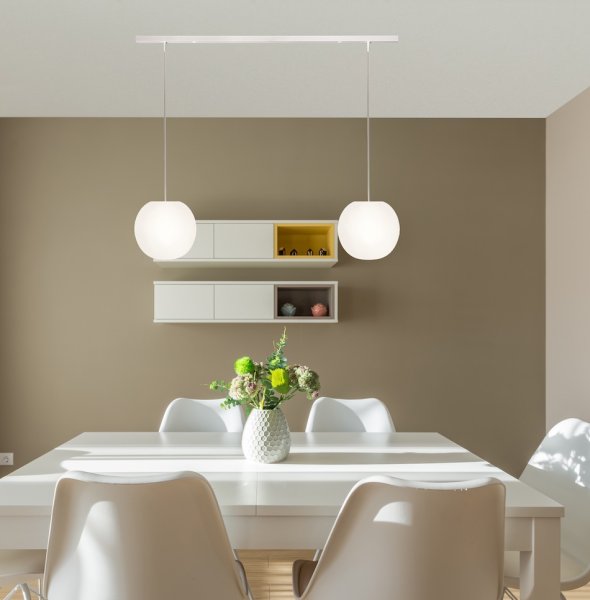

ACAI 21 - Double Pendant

Dimensions
A: Ø 21 cm
B: 17,5 cm
C: 150 cm
D: 2 cm
E: 90 cm
Light Source
1x E27 max. 40W - not included
Fixture white matt
AC21-B216W
Fixture black matt
AC21-B216S

ACAI 26 - Double Pendant

Dimensions
A: ø 26 cm
B: 21 cm
C: 150 cm
D: 2 cm
E: 90 cm
Light Source
1x E27 max. 40W - not included
Fixture white matt
AC26-B216W
Fixture black matt
AC26-B216S

Varianten

  • ACAI 21 - Triple pendant
    Dimensions
    • A: Ø 21 cm
    • B: 17,5 cm
    • C: 150 cm
    • D: 2 cm
    • E: 140 cm
    Light Source
    • 1x E27 max. 40W - not included
    Color Model
    Fixture white matt AC21-B326W
    Fixture black matt AC21-B326S
  • ACAI 26 - Triple Pendant
    Dimensions
    • A: ø 26 cm
    • B: 21 cm
    • C: 150 cm
    • D: 2 cm
    • E: 140 cm
    Light Source
    • 1x E27 max. 40W - not included
    Color Model
    Fixture white matt AC26-B326W
    Fixture black matt AC26-B326S

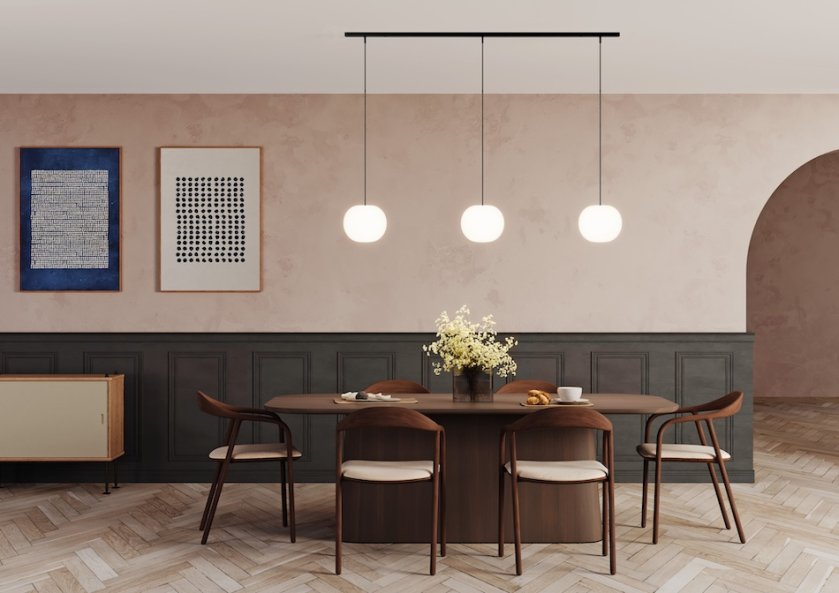

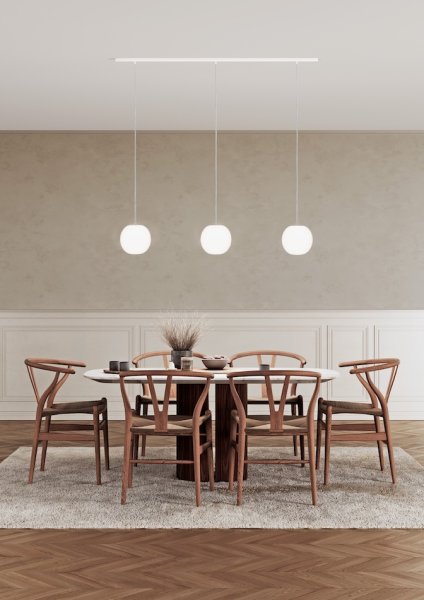

ACAI 21 - Triple pendant

Dimensions
A: Ø 21 cm
B: 17,5 cm
C: 150 cm
D: 2 cm
E: 140 cm
Light Source
1x E27 max. 40W - not included
Fixture white matt
AC21-B326W
Fixture black matt
AC21-B326S

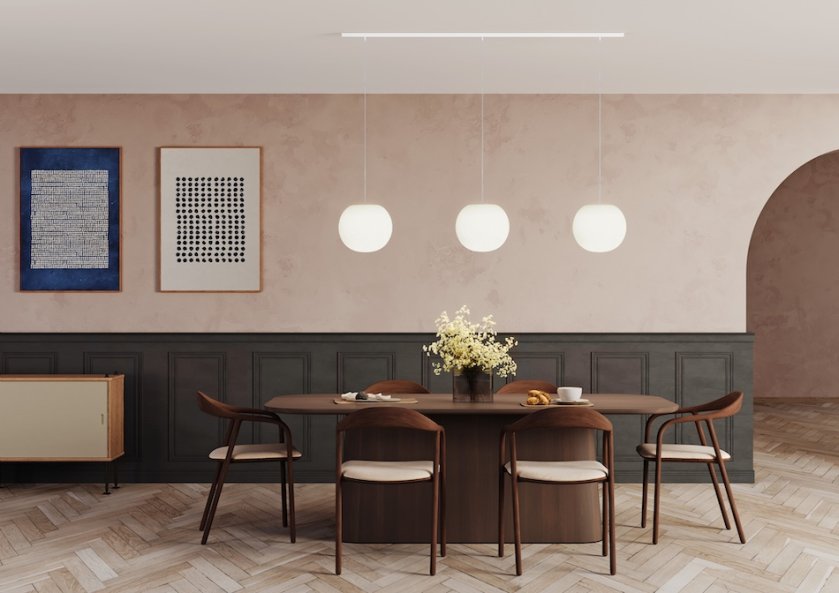

ACAI 26 - Triple Pendant

Dimensions
A: ø 26 cm
B: 21 cm
C: 150 cm
D: 2 cm
E: 140 cm
Light Source
1x E27 max. 40W - not included
Fixture white matt
AC26-B326W
Fixture black matt
AC26-B326S
  • ACAI 16 - Triple pendant
    Dimensions
    • A: Ø 16 cm
    • B: 15 cm
    • C: 150 cm
    • D: 2 cm
    • E: 100 cm
    Light Source
    • 3x E27 max. 40W - not included (golf-ball bulb needed!)
    Color Model
    Fixture white matt AC16-B316W
    Fixture black matt AC16-B316S

ACAI 16 - Triple pendant

Dimensions
A: Ø 16 cm
B: 15 cm
C: 150 cm
D: 2 cm
E: 100 cm
Light Source
3x E27 max. 40W - not included (golf-ball bulb needed!)
Fixture white matt
AC16-B316W
Fixture black matt
AC16-B316S
  • ACAI 16 - Quadruple pendant
    Dimensions
    • A: Ø 16 cm
    • B: 15 cm
    • C: 150 cm
    • D: 2 cm
    • E: 120 cm
    Light Source
    • 4x E27 max. 40W - not included (golf-ball bulb needed!)
    Color Model
    Fixture white matt AC16-B416W
    Fixture black matt AC16-B416S

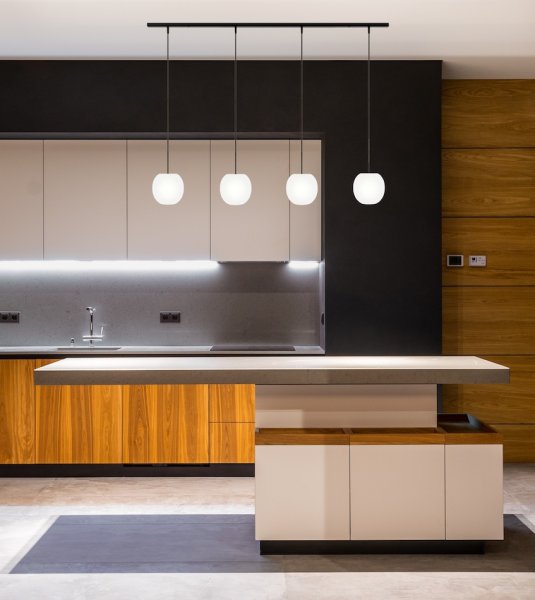

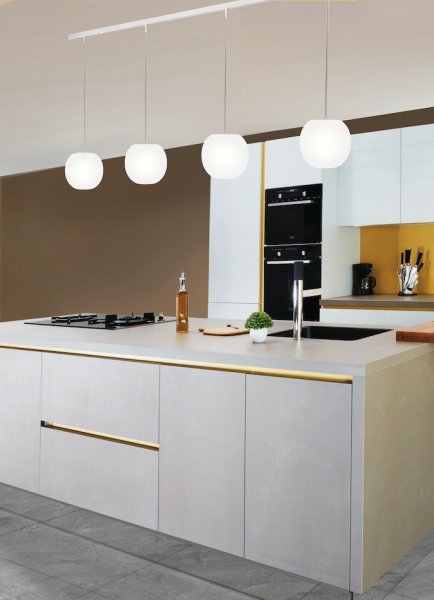

ACAI 16 - Quadruple pendant

Dimensions
A: Ø 16 cm
B: 15 cm
C: 150 cm
D: 2 cm
E: 120 cm
Light Source
4x E27 max. 40W - not included (golf-ball bulb needed!)
Fixture white matt
AC16-B416W
Fixture black matt
AC16-B416S
