AIH Pendant Light

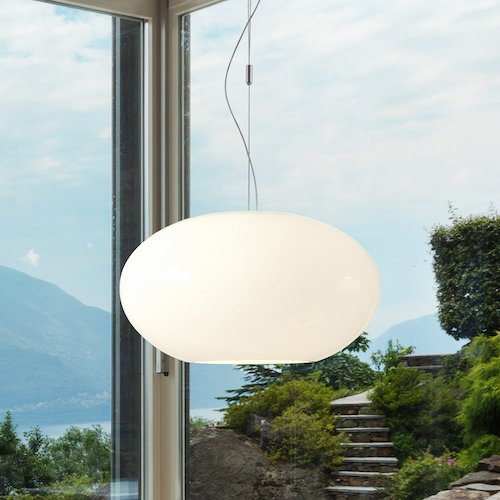

The Casablanca luminaires design classic. The AIH series captivates with the timeless-modern shape of the elaborately mouth-blown glass shade from our traditional glass blowing factory. The high-quality opal glass in white-matte, white-glossy, cream-matte or cream-glossy creates a pleasantly soft room light. The design of the retracted glass opening at the bottom prevents the view into the glass shade and thus minimizes the risk of glare. Another elegant detail: the curved top of the glass makes the suspension mechanism not vissible. By means of Casablanca Leuchten's patented wire suspension system, the hand-blown glass is always held securely and perfectly perpendicular. Due to extensive accessories, the AIH pendant luminaire offers different application possibilities.


Casablanca Leuchten GmbH
Max-Planck-Straße 16, 63303 Dreieich | +49 (0)6103 803770 | [email protected]

The Casablanca luminaires design classic. The AIH series captivates with the timeless-modern shape of the elaborately mouth-blown glass shade from our traditional glass blowing factory. The high-quality opal glass in white-matte, white-glossy, cream-matte or cream-glossy creates a pleasantly soft room light. The design of the retracted glass opening at the bottom prevents the view into the glass shade and thus minimizes the risk of glare. Another elegant detail: the curved top of the glass makes the suspension mechanism not vissible. By means of Casablanca Leuchten's patented wire suspension system, the hand-blown glass is always held securely and perfectly perpendicular. Due to extensive accessories, the AIH pendant luminaire offers different application possibilities.

Details


Material

Glass

  • White glossy

  • Cream glossy

  • White matt

  • Cream matt

Fixture

  • Aluminium handbrushed

Variants

EEC Light Source

Specifications
Item Description
Type of Luminaire Pendant
Designer Dieter K. Weis
Voltage max. 250 V
Light Spread Direct down & all sides diffuse
Dimmable Dimmable external
Light Disffusor Ø29cm & Ø38cm: SG15
Protection IP20
Protection Class 1 (Grounded)
Replaceable Light Source   Yes
EPREL
Suspension   Wire suspension
Longer Suspension   Possible
Multiple Suspension   Possible
Oblique Ceilings   Possible with accessories
Rise & Fall   Possible with accessories
Ceiling Fixture   Central & decentralised
Additional Information

EEC Light Source

Replaceable Light Source

Light Fixtures Made to Last

For an above-average product lifetime and for the sake of the environment, we design and manufacture our luminaires in such a way that the light source and, if present, the driver are always replaceable. For this reason, our luminaire models either use sockets that can be fitted with commercially available LED light sources or they use LED light source that can be replaced by a qualified electrician or by us. We follow market standards so that the LED light sources we use will still be available in comparable designs in the future. In this way, we ensure that our customers can enjoy a Casablanca luminaire for a long time and that the environment is protected by avoiding electrical waste.

EPREL

European Product Registry for Energy Labelling

The EU energy labelling and ecodesign legislation help improve the energy efficiency of products on the EU market.

Ecodesign sets common EU wide minimum standards to eliminate the least performing products from the market. The energy labels provide a clear and simple indication of the energy efficiency and other key features of products at the point of purchase. This makes it easier for consumers to save money on their household energy bills and contribute to reducing greenhouse gas emissions across the EU.

The EU legislation for energy labels and ecodesign has been estimated to bring energy savings of approximately 230 Mtoe (million tonnes of oil equivalent) by 2030. For consumers, this means an average saving of up to €285 per year on their household energy bills. Moreover, energy efficiency measures will create €66 billion in extra revenue for European companies.

Suspension Types

Wire Pendant Luminaire Information

Fixture can be suspensed with either the electrical cable or a Holding Wire

Longer Suspension

High Ceilings

Casablanca pendant luminaires are supplied with suspensions for an average room height of 2.50 to 2.85 meters. The suspensions can be shortened. For higher ceilings, the luminaires can be ordered with longer suspensions.

Multiple Suspension

The double pendant allows individual positioning of the two pendants in the desired distance between from each other. Also available as „rise&fall“ suspension.

For multiple fixture mounting please place an order for an additional single pendant WITHOUT CEILING CANOPY.

Multiple Fixture

Oblique Ceilings

Casablanca luminaires can be adapted and extended with optional accessories to structural conditions and individual requirements.

Pendant luminaires cannot be mounted on sloping ceilings without modifications, otherwise there is a risk of the mounting brackets coming loose or the wire getting damaged. This is why Casablanca offers special accessories for mounting on sloping ceilings.

Rise & Fall Suspension

Casablanca luminaires can be adapted and extended with optional accessories to structural conditions and individual requirements.

Single Pendant with »Rise & Rall« Suspension (two fixing possibilities)

Ceiling Fixture

Wire Pendant Luminaire Information

In case the electric outlet isn’t located where the luminaire is planned to be installed, we recommend the decentralized fixing possibility. Longer electric cables or holding wires are available for a surcharge.


Central fixing possibility

Decentralised fixing possibility


Material

Glass

White glossy

Cream glossy

White matt

Cream matt

Fixture

Aluminium handbrushed

Specifications

Type of Luminaire
Pendant
Designer
Dieter K. Weis
Voltage
max. 250 V
Light Spread
Direct down & all sides diffuse
Dimmable
Dimmable external
Light Disffusor
Ø29cm & Ø38cm: SG15
Protection
IP20
Protection Class
1 (Grounded)
Suspension
Wire suspension
Longer Suspension
Possible
Multiple Suspension
Possible
Oblique Ceilings
Possible with accessories
Rise & Fall
Possible with accessories
Ceiling Fixture
Central & decentralised

Varianten

  • AIH - Single Pendant - Ø19cm

    Dimensions
    • A: Ø 19 cm
    • B: 10 cm
    • C: 0-150 cm
    • D: 0-250 cm
    • E: Ø 7 cm
    Light Source
    • 1x G9 (max. 60W - not included)
    Cable
    • 0-250 cm

    Color Model
    White glossy AI41-B78A
    White matt AI51-B78A
  • AIH -Single Pendant - Ø29cm

    Dimensions
    • A: Ø 29 cm
    • B: 17 cm
    • C: 0-150 cm
    • D: 0-250 cm
    • E: Ø 7 cm
    Light Source
    • 1x E27 (max. 75W - not included)
    Cable
    • 0-250 cm

    Color Model
    White glossy AI21-B77A
    Cream glossy AI27-B77A
    White matt AI01-B77A
    Cream matt AI07-B77A

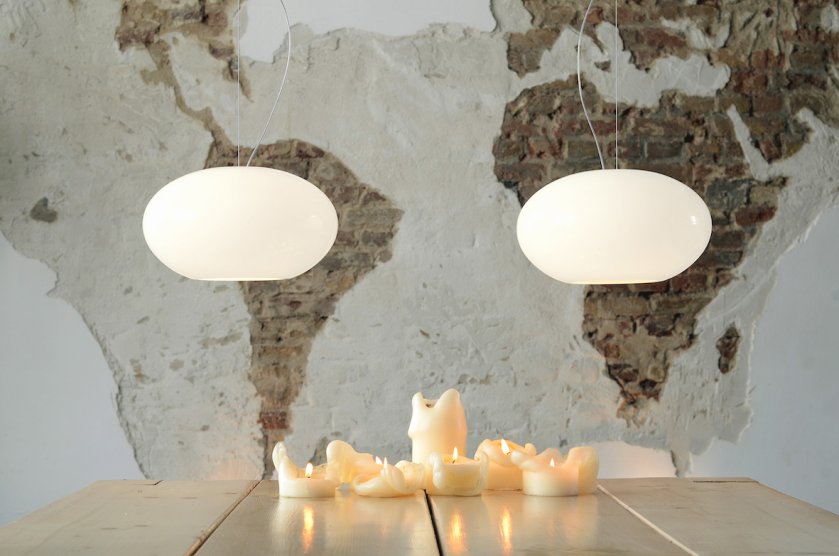

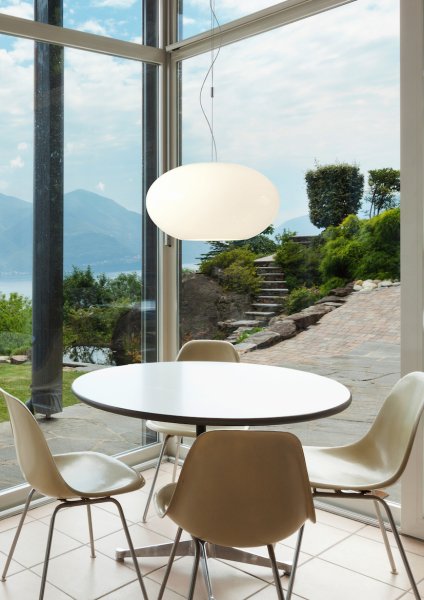

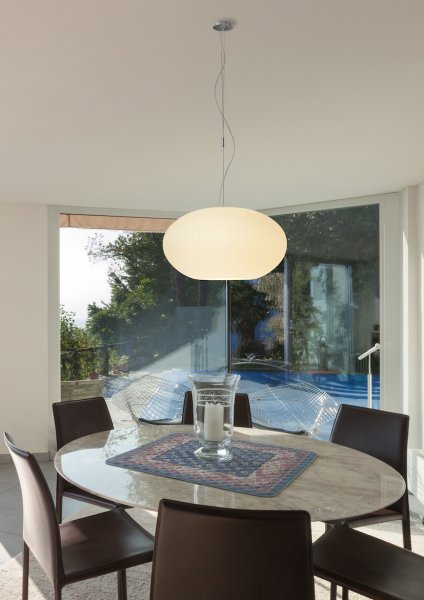

  • AIH - Single Pendant - Ø38cm

    Dimensions
    • A: Ø 38 cm
    • B: 20 cm
    • C: 0-150 cm
    • D: 0-250 cm
    • E: Ø 7 cm
    Light Source
    • 1x E27 (max. 105W - not included)
    Cable
    • 0-250 cm

    Color Model
    White glossy AI31-B77A
    Cream glossy AI37-B77A
    White matt AI11-B77A
    Cream matt AI17-B77A

AIH - Single Pendant - Ø19cm

Dimensions
A: Ø 19 cm
B: 10 cm
C: 0-150 cm
D: 0-250 cm
E: Ø 7 cm
Light Source
1x G9 (max. 60W - not included)
Cable
0-250 cm
White glossy
AI41-B78A
White matt
AI51-B78A

AIH -Single Pendant - Ø29cm

Dimensions
A: Ø 29 cm
B: 17 cm
C: 0-150 cm
D: 0-250 cm
E: Ø 7 cm
Light Source
1x E27 (max. 75W - not included)
Cable
0-250 cm
White glossy
AI21-B77A
Cream glossy
AI27-B77A
White matt
AI01-B77A
Cream matt
AI07-B77A

AIH - Single Pendant - Ø38cm

Dimensions
A: Ø 38 cm
B: 20 cm
C: 0-150 cm
D: 0-250 cm
E: Ø 7 cm
Light Source
1x E27 (max. 105W - not included)
Cable
0-250 cm
White glossy
AI31-B77A
Cream glossy
AI37-B77A
White matt
AI11-B77A
Cream matt
AI17-B77A

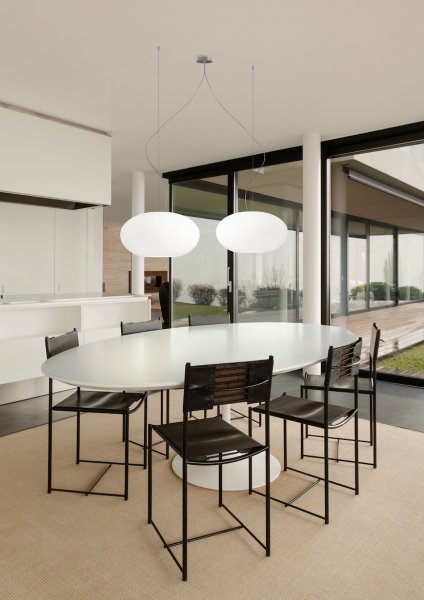

  • AIH - Double Pendant - Ø19cm

    Dimensions
    • A: Ø 19 cm
    • B: 10 cm
    • C: 0-150 cm
    • D: 0-250 cm
    • E: Ø 7 cm
    Light Source
    • 2x G9 (max. 60W - not included)
    Cable
    • 0-250 cm

    Color Model
    White glossy AI41-B88A
    White matt AI51-B88A
  • AIH -Double Pendant - Ø29cm

    Dimensions
    • A: Ø 29 cm
    • B: 17 cm
    • C: 0-150 cm
    • D: 0-250 cm
    • E: Ø 7 cm
    Light Source
    • 2x E27 (max. 75W - not included)
    Cable
    • 0-250 cm

    Color Model
    White glossy AI21-B87A
    Cream glossy AI27-B87A
    White matt AI01-B87A
    Cream matt AI07-B87A
  • AIH - Double Pendant - Ø38cm

    Dimensions
    • A: Ø 38 cm
    • B: 20 cm
    • C: 0-150 cm
    • D: 0-250 cm
    • E: Ø 7 cm
    Light Source
    • 2x E27 (max. 105W - not included)
    Cable
    • 0-250 cm

    Color Model
    White glossy AI31-B87A
    Cream glossy AI37-B87A
    White matt AI11-B87A
    Cream matt AI17-B87A

AIH - Double Pendant - Ø19cm

Dimensions
A: Ø 19 cm
B: 10 cm
C: 0-150 cm
D: 0-250 cm
E: Ø 7 cm
Light Source
2x G9 (max. 60W - not included)
Cable
0-250 cm
White glossy
AI41-B88A
White matt
AI51-B88A

AIH -Double Pendant - Ø29cm

Dimensions
A: Ø 29 cm
B: 17 cm
C: 0-150 cm
D: 0-250 cm
E: Ø 7 cm
Light Source
2x E27 (max. 75W - not included)
Cable
0-250 cm
White glossy
AI21-B87A
Cream glossy
AI27-B87A
White matt
AI01-B87A
Cream matt
AI07-B87A

AIH - Double Pendant - Ø38cm

Dimensions
A: Ø 38 cm
B: 20 cm
C: 0-150 cm
D: 0-250 cm
E: Ø 7 cm
Light Source
2x E27 (max. 105W - not included)
Cable
0-250 cm
White glossy
AI31-B87A
Cream glossy
AI37-B87A
White matt
AI11-B87A
Cream matt
AI17-B87A
