BAGAN

BAGAN Pendant Light

Since 1980 Casablanca Leuchten stands for high-quality hand-blown glass shades from the best glassworks - the series BAGAN is dedicated to this attachment to the material glass. The timeless form is based on the classic shape of the light bulb. Due to its timeless shape the BAGAN pendant lamp fits into almost any environment. Its ideal use is suspended above the dining table and above the kitchen island. An E27 socket is used in the BAGAN, this allows for individual fitting and easy replacement of the light source. The BAGAN pendant luminaires come with the patented Casablanca luminaire suspension system, which enables both centralized and decentralized suspension from the power supply and also allows for adaptability of the suspension lengths and equipment with accessories such as height adjustment. BAGAN is available as single pendant or double pendant.

Casablanca Leuchten GmbH
Max-Planck-Straße 16, 63303 Dreieich | +49 (0)6103 803770 | info@casablanca.de

Since 1980 Casablanca Leuchten stands for high-quality hand-blown glass shades from the best glassworks - the series BAGAN is dedicated to this attachment to the material glass. The timeless form is based on the classic shape of the light bulb. Due to its timeless shape the BAGAN pendant lamp fits into almost any environment. Its ideal use is suspended above the dining table and above the kitchen island. An E27 socket is used in the BAGAN, this allows for individual fitting and easy replacement of the light source. The BAGAN pendant luminaires come with the patented Casablanca luminaire suspension system, which enables both centralized and decentralized suspension from the power supply and also allows for adaptability of the suspension lengths and equipment with accessories such as height adjustment. BAGAN is available as single pendant or double pendant.

Details

Material

Glass

  • Opal white matt

Fixture

  • Aluminium handbrushed

Variants
Specifications
Item Description
Type of Luminaire Pendant
Designer Dieter K. Weis
Voltage max. 250 V
Light Spread Direct down & all sides diffuse
Dimmable Dimmable external
Light Disffusor BA60 | SG15
Protection IP20
Protection Class 1 (Grounded)
Replaceable Light Source   Yes
Suspension   Wire suspension
Longer Suspension   Possible
Multiple Suspension   Possible
Oblique Ceilings   Possible with accessories
Rise & Fall   Possible with accessories
Ceiling Fixture   Central & decentralised
Additional Information

Replaceable Light Source

Light Fixtures Made to Last

For an above-average product lifetime and for the sake of the environment, we design and manufacture our luminaires in such a way that the light source and, if present, the driver are always replaceable. For this reason, our luminaire models either use sockets that can be fitted with commercially available LED light sources or they use LED light source that can be replaced by a qualified electrician or by us. We follow market standards so that the LED light sources we use will still be available in comparable designs in the future. In this way, we ensure that our customers can enjoy a Casablanca luminaire for a long time and that the environment is protected by avoiding electrical waste.

EPREL

European Product Registry for Energy Labelling

The EU energy labelling and ecodesign legislation help improve the energy efficiency of products on the EU market.

Ecodesign sets common EU wide minimum standards to eliminate the least performing products from the market. The energy labels provide a clear and simple indication of the energy efficiency and other key features of products at the point of purchase. This makes it easier for consumers to save money on their household energy bills and contribute to reducing greenhouse gas emissions across the EU.

The EU legislation for energy labels and ecodesign has been estimated to bring energy savings of approximately 230 Mtoe (million tonnes of oil equivalent) by 2030. For consumers, this means an average saving of up to €285 per year on their household energy bills. Moreover, energy efficiency measures will create €66 billion in extra revenue for European companies.

Suspension Types

Wire Pendant Luminaire Information

Fixture can be suspensed with either the electrical cable or a Holding Wire

Longer Suspension

High Ceilings

Casablanca pendant luminaires are supplied with suspensions for an average room height of 2.50 to 2.85 meters. The suspensions can be shortened. For higher ceilings, the luminaires can be ordered with longer suspensions.

Multiple Suspension

The double pendant allows individual positioning of the two pendants in the desired distance between from each other. Also available as „rise&fall“ suspension.

For multiple fixture mounting please place an order for an additional single pendant WITHOUT CEILING CANOPY.

Multiple Fixture

Oblique Ceilings

Casablanca luminaires can be adapted and extended with optional accessories to structural conditions and individual requirements.

Pendant luminaires cannot be mounted on sloping ceilings without modifications, otherwise there is a risk of the mounting brackets coming loose or the wire getting damaged. This is why Casablanca offers special accessories for mounting on sloping ceilings.

Rise & Fall Suspension

Casablanca luminaires can be adapted and extended with optional accessories to structural conditions and individual requirements.

Single Pendant with »Rise & Rall« Suspension (two fixing possibilities)

Ceiling Fixture

Wire Pendant Luminaire Information

In case the electric outlet isn’t located where the luminaire is planned to be installed, we recommend the decentralized fixing possibility. Longer electric cables or holding wires are available for a surcharge.


Central fixing possibility

Decentralised fixing possibility

Material

Glass

Opal white matt

Fixture

Aluminium handbrushed

Specifications

Type of Luminaire
Pendant
Designer
Dieter K. Weis
Voltage
max. 250 V
Light Spread
Direct down & all sides diffuse
Dimmable
Dimmable external
Light Disffusor
BA60 | SG15
Protection
IP20
Protection Class
1 (Grounded)
Suspension
Wire suspension
Longer Suspension
Possible
Multiple Suspension
Possible
Oblique Ceilings
Possible with accessories
Rise & Fall
Possible with accessories
Ceiling Fixture
Central & decentralised

Varianten

  • BAGAN - Single Pendant
    Dimensions
    • A: Ø 26 cm
    • B: 27 cm
    • C: 0-150 cm
    • D: 0-250 cm
    • E: Ø 7 cm
    Light Source
    • 1x E27 (max. 100W - not included)
    Cable
    • 0-250 cm
    Color Model
    Opal white matt BA71-B77A

BAGAN - Single Pendant

Dimensions
A: Ø 26 cm
B: 27 cm
C: 0-150 cm
D: 0-250 cm
E: Ø 7 cm
Light Source
1x E27 (max. 100W - not included)
Cable
0-250 cm
Opal white matt
BA71-B77A

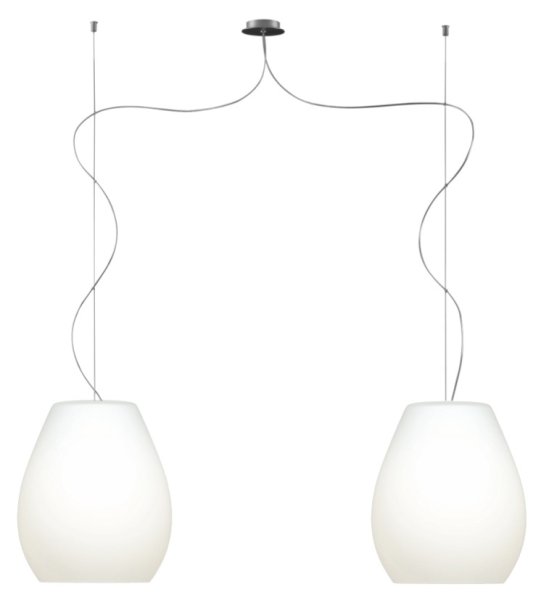

  • BAGAN - Double Pendant
    Dimensions
    • A: Ø 26 cm
    • B: 27 cm
    • C: 0-150 cm
    • D: 0-250 cm
    • E: Ø 7 cm
    Light Source
    • 2x E27 (max. 100W - not included)
    Cable
    • 0-250 cm
    Color Model
    Opal white matt BA71-B87A

BAGAN - Double Pendant

Dimensions
A: Ø 26 cm
B: 27 cm
C: 0-150 cm
D: 0-250 cm
E: Ø 7 cm
Light Source
2x E27 (max. 100W - not included)
Cable
0-250 cm
Opal white matt
BA71-B87A

3D-Model

  • Model: BA71-B77A

Downloads

Files
BAGAN Datasheet Datasheet In-Browser
BAGAN Einzel-Pendelleuchte Montageanleitung.pdf application/pdf file
BAGAN Doppel-Pendelleuchte Montageanleitung.pdf application/pdf file
