AIH

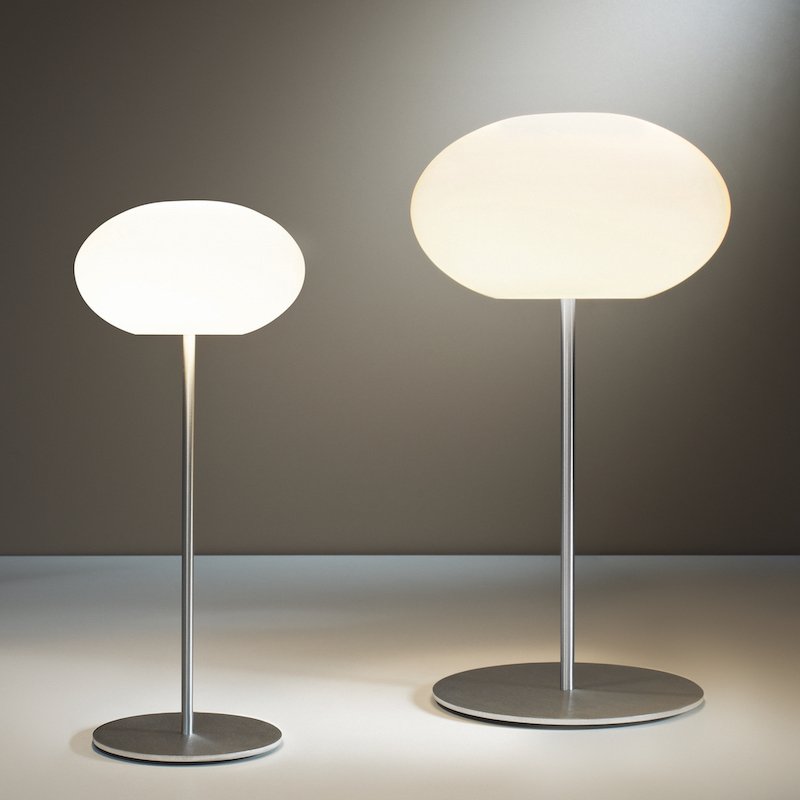

AIH Table Light

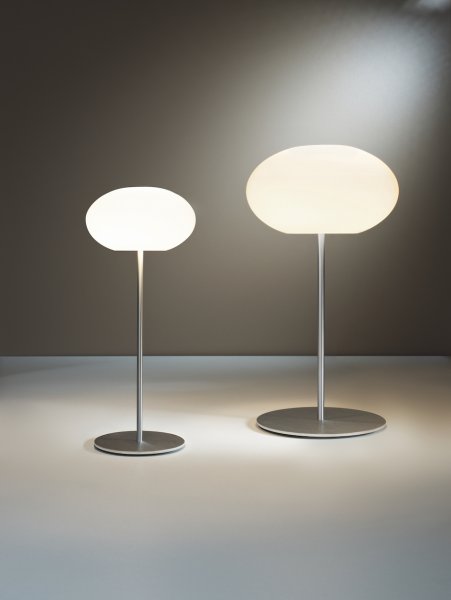

The fitting of AIH table lamp is constructed of high quality aluminum and stainless steel, the surface is refined by manual brushing. The hand-blown glass creates a uniform glare-free light with high "feel-good" factor. The solid lamp base guarantees a safe and stable stand on sideboards, nightstands and desks. Available in 2 sizes and 2 glass colors. Optionally available with or without hand dimmer (suitable for dimmable LED bulbs) on the lamp cable.

Casablanca Leuchten GmbH
Max-Planck-Straße 16, 63303 Dreieich | +49 (0)6103 803770 | info@casablanca.de

The fitting of AIH table lamp is constructed of high quality aluminum and stainless steel, the surface is refined by manual brushing. The hand-blown glass creates a uniform glare-free light with high "feel-good" factor. The solid lamp base guarantees a safe and stable stand on sideboards, nightstands and desks. Available in 2 sizes and 2 glass colors. Optionally available with or without hand dimmer (suitable for dimmable LED bulbs) on the lamp cable.

Details

Material

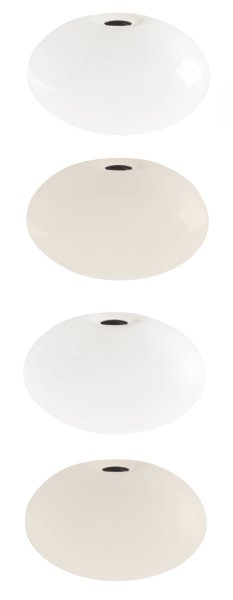

Glass

  • White glossy

  • White matt

Fixture

  • Aluminium handbrushed

Variants
Specifications
Item Description
Type of Luminaire Table Light
Designer Dieter K. Weis
Voltage max. 250 V
Light Spread Down direct & all sides diffuse
EEC ( A++ ) - ( E )
Dimmable Dimmable external
Protection IP20
Protection Class 1 (Grounded)
Replaceable Light Source   Yes
Additional Information

Replaceable Light Source

Light Fixtures Made to Last

For an above-average product lifetime and for the sake of the environment, we design and manufacture our luminaires in such a way that the light source and, if present, the driver are always replaceable. For this reason, our luminaire models either use sockets that can be fitted with commercially available LED light sources or they use LED light source that can be replaced by a qualified electrician or by us. We follow market standards so that the LED light sources we use will still be available in comparable designs in the future. In this way, we ensure that our customers can enjoy a Casablanca luminaire for a long time and that the environment is protected by avoiding electrical waste.

EPREL

European Product Registry for Energy Labelling

The EU energy labelling and ecodesign legislation help improve the energy efficiency of products on the EU market.

Ecodesign sets common EU wide minimum standards to eliminate the least performing products from the market. The energy labels provide a clear and simple indication of the energy efficiency and other key features of products at the point of purchase. This makes it easier for consumers to save money on their household energy bills and contribute to reducing greenhouse gas emissions across the EU.

The EU legislation for energy labels and ecodesign has been estimated to bring energy savings of approximately 230 Mtoe (million tonnes of oil equivalent) by 2030. For consumers, this means an average saving of up to €285 per year on their household energy bills. Moreover, energy efficiency measures will create €66 billion in extra revenue for European companies.

Suspension Types

Wire Pendant Luminaire Information

Fixture can be suspensed with either the electrical cable or a Holding Wire

Longer Suspension

High Ceilings

Casablanca pendant luminaires are supplied with suspensions for an average room height of 2.50 to 2.85 meters. The suspensions can be shortened. For higher ceilings, the luminaires can be ordered with longer suspensions.

Multiple Suspension

The double pendant allows individual positioning of the two pendants in the desired distance between from each other. Also available as „rise&fall“ suspension.

For multiple fixture mounting please place an order for an additional single pendant WITHOUT CEILING CANOPY.

Multiple Fixture

Oblique Ceilings

Casablanca luminaires can be adapted and extended with optional accessories to structural conditions and individual requirements.

Pendant luminaires cannot be mounted on sloping ceilings without modifications, otherwise there is a risk of the mounting brackets coming loose or the wire getting damaged. This is why Casablanca offers special accessories for mounting on sloping ceilings.

Rise & Fall Suspension

Casablanca luminaires can be adapted and extended with optional accessories to structural conditions and individual requirements.

Single Pendant with »Rise & Rall« Suspension (two fixing possibilities)

Ceiling Fixture

Wire Pendant Luminaire Information

In case the electric outlet isn’t located where the luminaire is planned to be installed, we recommend the decentralized fixing possibility. Longer electric cables or holding wires are available for a surcharge.


Central fixing possibility

Decentralised fixing possibility

Material

Glass

White glossy

White matt

Fixture

Aluminium handbrushed

Specifications

Type of Luminaire
Table Light
Designer
Dieter K. Weis
Voltage
max. 250 V
Light Spread
Down direct & all sides diffuse
EEC
( A++ ) - ( E )
Dimmable
Dimmable external
Protection
IP20
Protection Class
1 (Grounded)

Varianten

  • AIH - 43cm
    Dimensions
    • A: Ø 19 cm
    • B: 43 cm
    • C: Ø 16 cm
    Light Source
    • 1x G9 (40W max- not included)
    Color Model
    White glossy AI41-T171A
    White matt AI51-T171A
  • AIH - 43cm with dimmer
    Dimensions
    • A: Ø 19 cm
    • B: 43 cm
    • C: Ø 16 cm
    Light Source
    • 1x G9 (40W max- not included)
    Color Model
    White glossy AI41-T171AD
    White matt AI51-T171AD
  • AIH - 53cm
    Dimensions
    • A: Ø 28 cm
    • B: 53 cm
    • C: Ø 23 cm
    Light Source
    • 1x E27 (75W max- not included)
    Color Model
    Weiß glänzend AI2-T172A
    Weiß matt AI01-T172A
  • AIH - 53cm with dimmer
    Dimensions
    • A: Ø 28 cm
    • B: 53 cm
    • C: Ø 23 cm
    Light Source
    • 1X E27 (75W max- not included)
    Color Model
    White glossy AI21-T172AD
    White matt AI01-T172AD

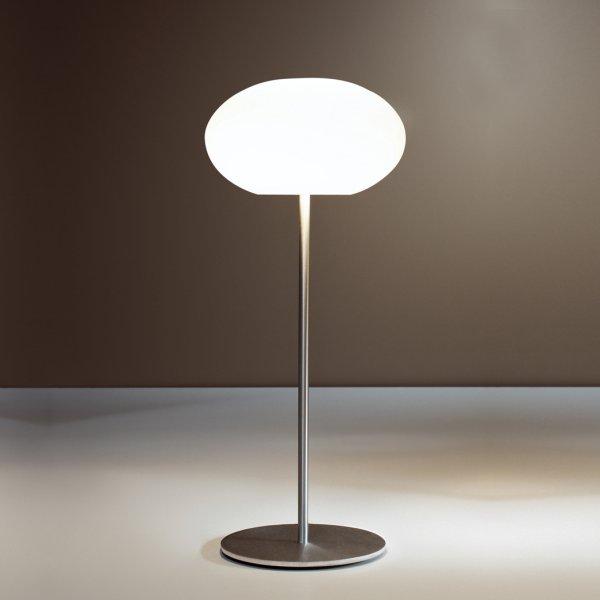

AIH - 43cm

Dimensions
A: Ø 19 cm
B: 43 cm
C: Ø 16 cm
Light Source
1x G9 (40W max- not included)
White glossy
AI41-T171A
White matt
AI51-T171A

AIH - 43cm with dimmer

Dimensions
A: Ø 19 cm
B: 43 cm
C: Ø 16 cm
Light Source
1x G9 (40W max- not included)
White glossy
AI41-T171AD
White matt
AI51-T171AD

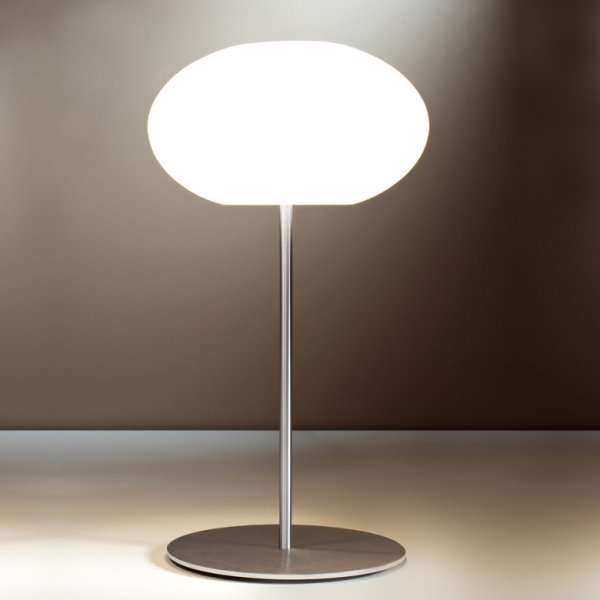

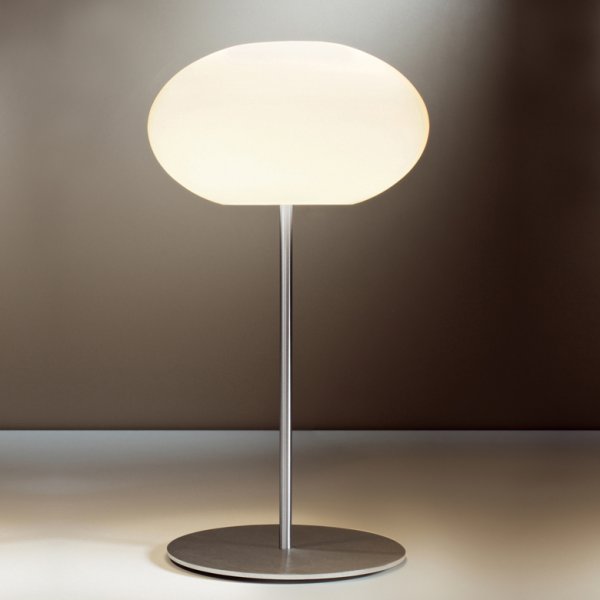

AIH - 53cm

Dimensions
A: Ø 28 cm
B: 53 cm
C: Ø 23 cm
Light Source
1x E27 (75W max- not included)
Weiß glänzend
AI2-T172A
Weiß matt
AI01-T172A

AIH - 53cm with dimmer

Dimensions
A: Ø 28 cm
B: 53 cm
C: Ø 23 cm
Light Source
1X E27 (75W max- not included)
White glossy
AI21-T172AD
White matt
AI01-T172AD

Downloads

Files
AIH Datasheet Datasheet In-Browser
AIH Tischleuchte Montageanleitung.pdf application/pdf file
